Stainless Steel Electric Meter Sealing Screws Phillips Drill
Cylindrical Head DIN404 Steel Winch Sealed Meter Screws
Phillips Drill Cylindrical Head DIN404 Steel Winch Sealed Meter
Screws
Our custom screws , bolts,pins,shatf are widely used in a variety
of products, including consumer electronics, DVD players, mobile
phones, computers, printers, tablets, power tools, widely used in
household appliances, telecommunications, computer imaging
equipment, and mini products. Our Sealing screws are available in a
variety of grades, materials, and finishes, in metric and inch
sizes. Guanbiao hardware is able to manufacture custom Screws to
exact customer specifications on request. Contact us or submit your
drawing to Guanbiao hardware to receive a quotation.
Size Table
| d | p | DK(max) | DK(min) | K(max) | K(min) | T(max) | T(min) |
|---|
| M2 | 0.4 | 3.8 | 3.68 | 3.3 | 2.7 | 0.9 | 0.7 |
| M2.5 | 0.45 | 4.5 | 4.38 | 3.38 | 3.12 | 1 | 0.8 |
| M3 | 0.5 | 5.5 | 5.38 | 4.38 | 3.12 | 1.25 | 1 |
| M3.5 | 0.6 | 6 | 5.88 | 4.88 | 4.12 | 1.5 | 1.2 |
| M4 | 0.7 | 7 | 6.85 | 5.38 | 4.62 | 1.7 | 1.4 |
| M5 | 0.8 | 8.5 | 8.35 | 6.95 | 6.05 | 2 | 1.7 |
| M6 | 1 | 10 | 9.85 | 8.45 | 7.55 | 2.6 | 2.2 |
| M8 | 1.25 | 13 | 12.82 | 10.45 | 9.55 | 3.2 | 2.7 |

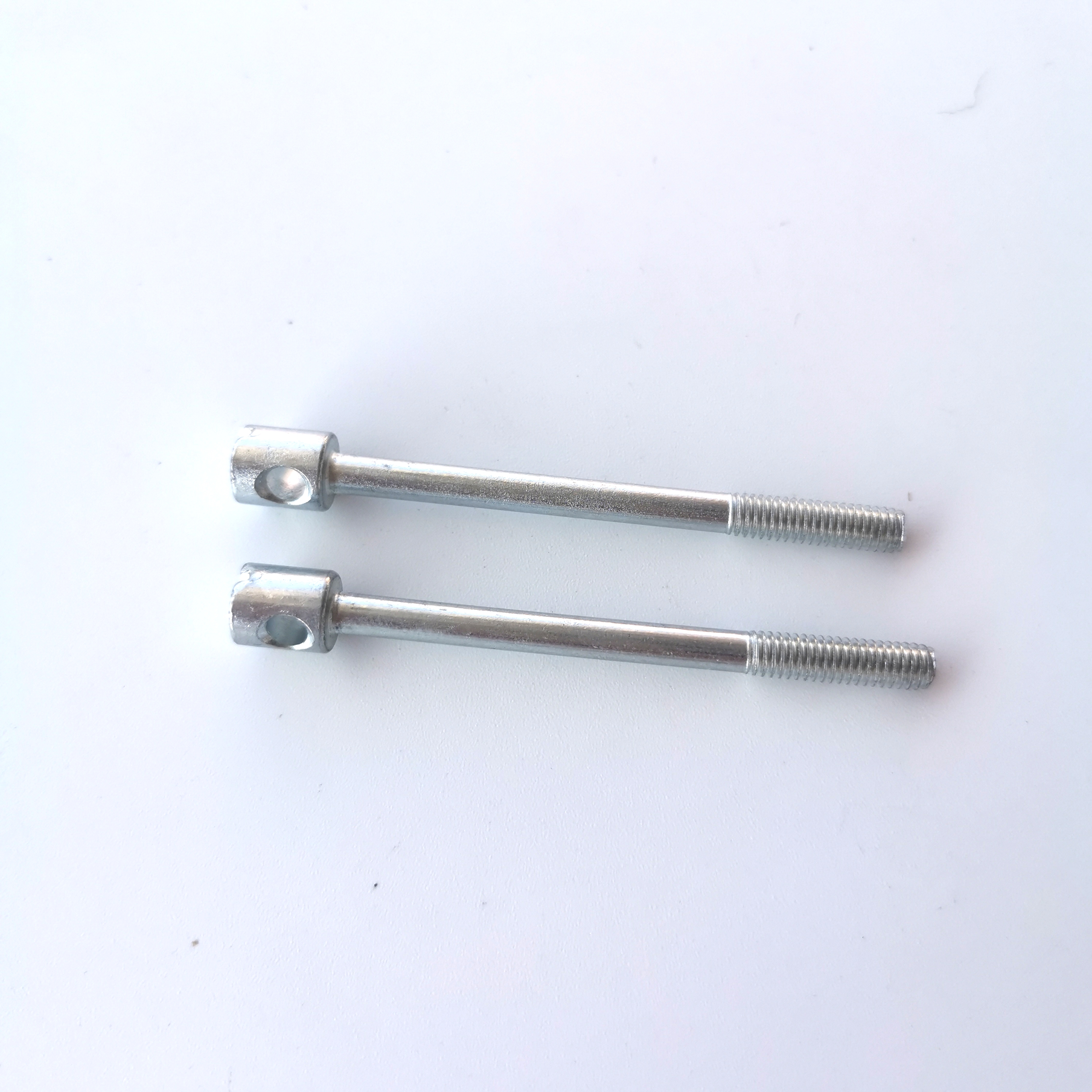

SS304 cross hole meter screw Product image presentation
Factory environmental display
SS304 Hole Screw production workshop
Non-standard custom screws, hardware product production workshop
Factory testing equipment
Mold warehouse display
Cold Heading Advantage
1, production process without waste, save material cost, especially
precious metals and small head rod products.
2, through extrusion molding, maximum retention of material metal
streamline, not easy to break.
3, through cold work hardening, the material metal composition
arrangement dense, to achieve the advantages of good tensile
strength, high hardness, high torsion.
Fully automated production saves a lot of labor costs.
5, can produce M1.0-M20 products, the head can achieve 40.0mm, the
longest can achieve 300mm.
6, Taiwan imported equipment, high precision, multi-power equipment
can produce complex shape of hardware.
7, the material is more environmentally friendly, such as 304
stainless steel is food grade material, has good environmental
protection and corrosion resistance.
8, surface treatment, high finish, good adhesion, more easy to
coating.
All of the above products are produced by our company. Most of them
have complete sets of molds or some molds. If you find us, you can
make money. Welcome to call or add wechat: +86 13423026460
