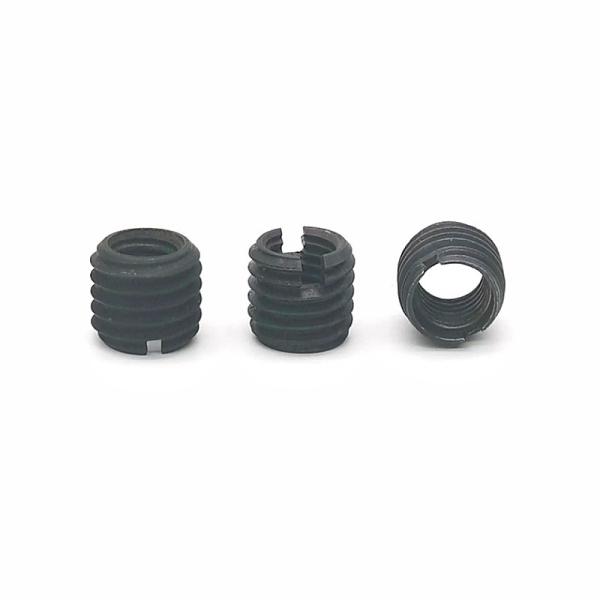

Self Thread Protector Level 10.9 M10x13 For Wheel
Self Thread Protector Level Description:
A thread protector is a plastic or metal cover used to protect
threads. They are typically cylindrical in shape and have both an
internal and external thread for easy installation and removal.
Thread protectors are commonly used to protect the threads of
pipes, drill rods, bolts, and other threaded components from damage
during transportation, storage, and operation.
| Product name: | self-tapping thread sleeve, thread protection sleeve |
| Material: | 10B21 |
| Size: | M10/M14*13 |
| Outer teeth: | M14 |
| Internal teeth: | M10 |
| Groove type: | cut a word |
| Groove depth: | 4.0mm |
| Slot width: | 3.0mm |
| Overall length: | 13.0mm |
| Hardness grade: | 10.9 level |
| Surface treatment: | Electrophoretic black |
| Applications: | aircraft, wheels, machinery |
Self Thread Protector Level Features:
The features of a thread protector include durability, ease of
installation and removal, corrosion resistance, waterproofing,
dustproofing, vibration resistance, and protection of threaded
components from damage.
Self Thread Protector Level Applications:
Thread protectors are widely used in industries such as petroleum,
natural gas, chemicals, water treatment, aerospace, military, and
others to protect the threads of pipes, drill rods, bolts, valves,
and other threaded components. They are also used in industrial,
construction, mechanical manufacturing, automotive, and other
industries that use various threaded connections.
Self Thread Protector Level product detail presentation
Self threading Inserts
Self threading Inserts Factory environmental display
Self threading Inserts CNC machining center
Self-Threading inserts are an economical, easy-to-use solution for
adding a thread to a variety of steel or alov.
Available in standard or flanged configuration, Self-Threading
inserts are steel inserts having both an external and internal
thread and two slots which provide rapid cutting action. When
driven into a cored or drilled hole, the insert cuts its own thread
cleanly and evenly.
Friction between the insert and the steel permanently holds it in
place after installation.
Self-threading inserts can be installed into steel or alloy
materials with a tap wrench or with a drill press and tapping head.
No special tooling is required.
